Raspberry Pi to Pixhawk Telemetry Adapter
$10.00

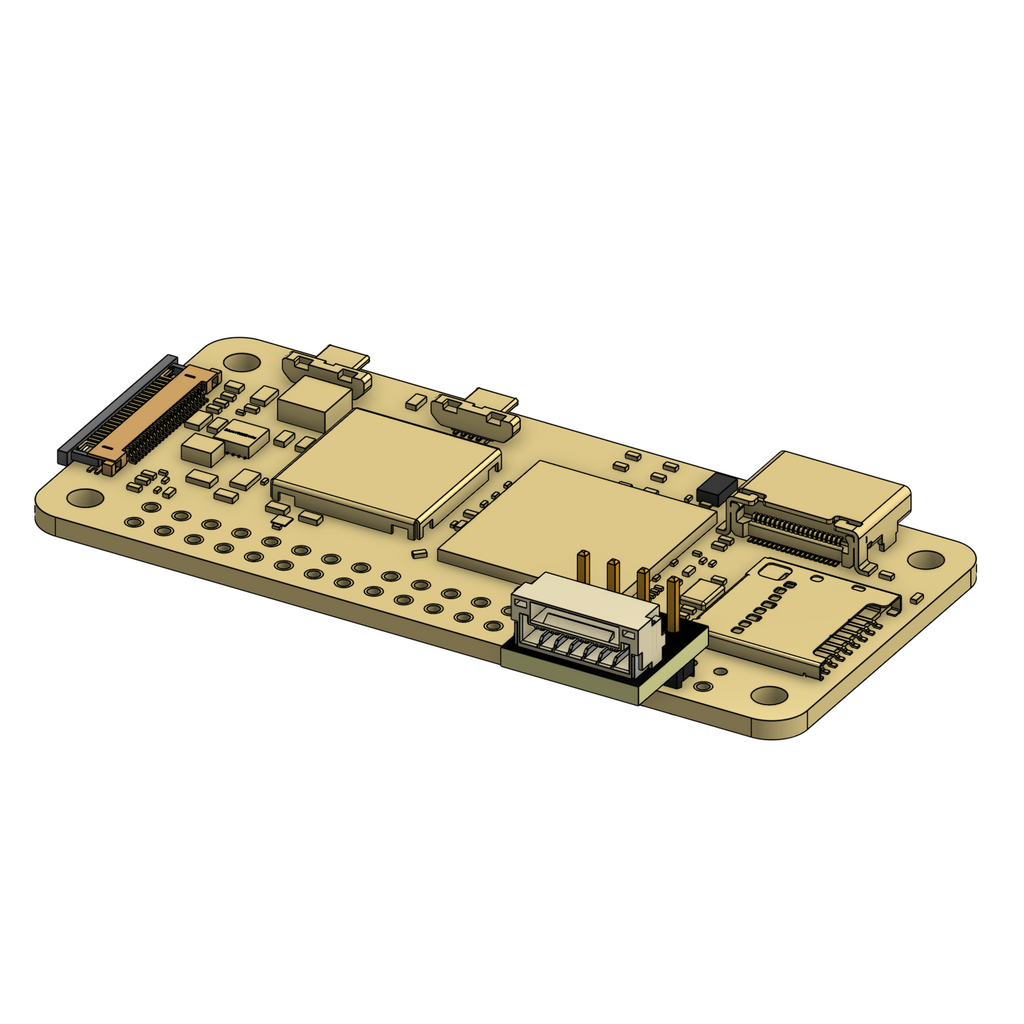

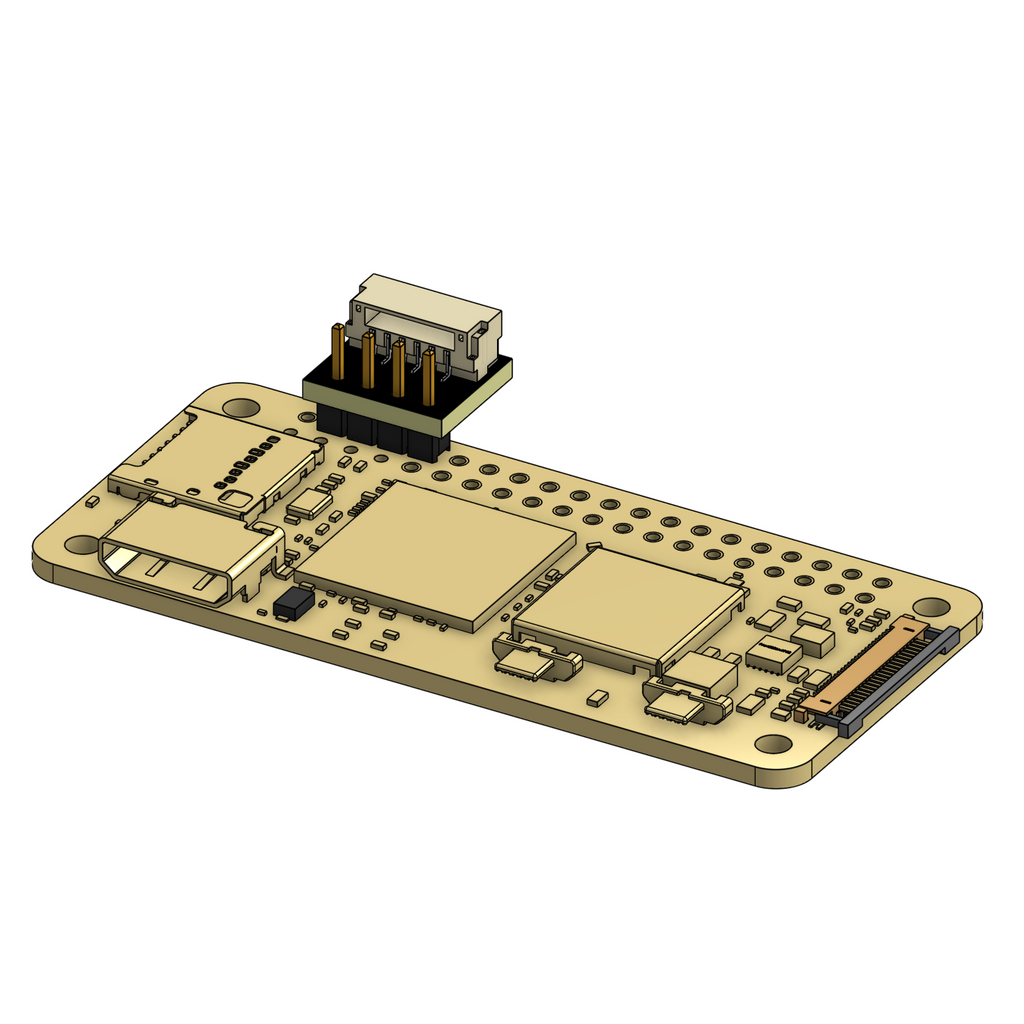

Enables a telemetry connection (power and data) between a Raspberry Pi (Zero, Zero 2W, 3, 4, 5) and a Pixhawk flight controller.

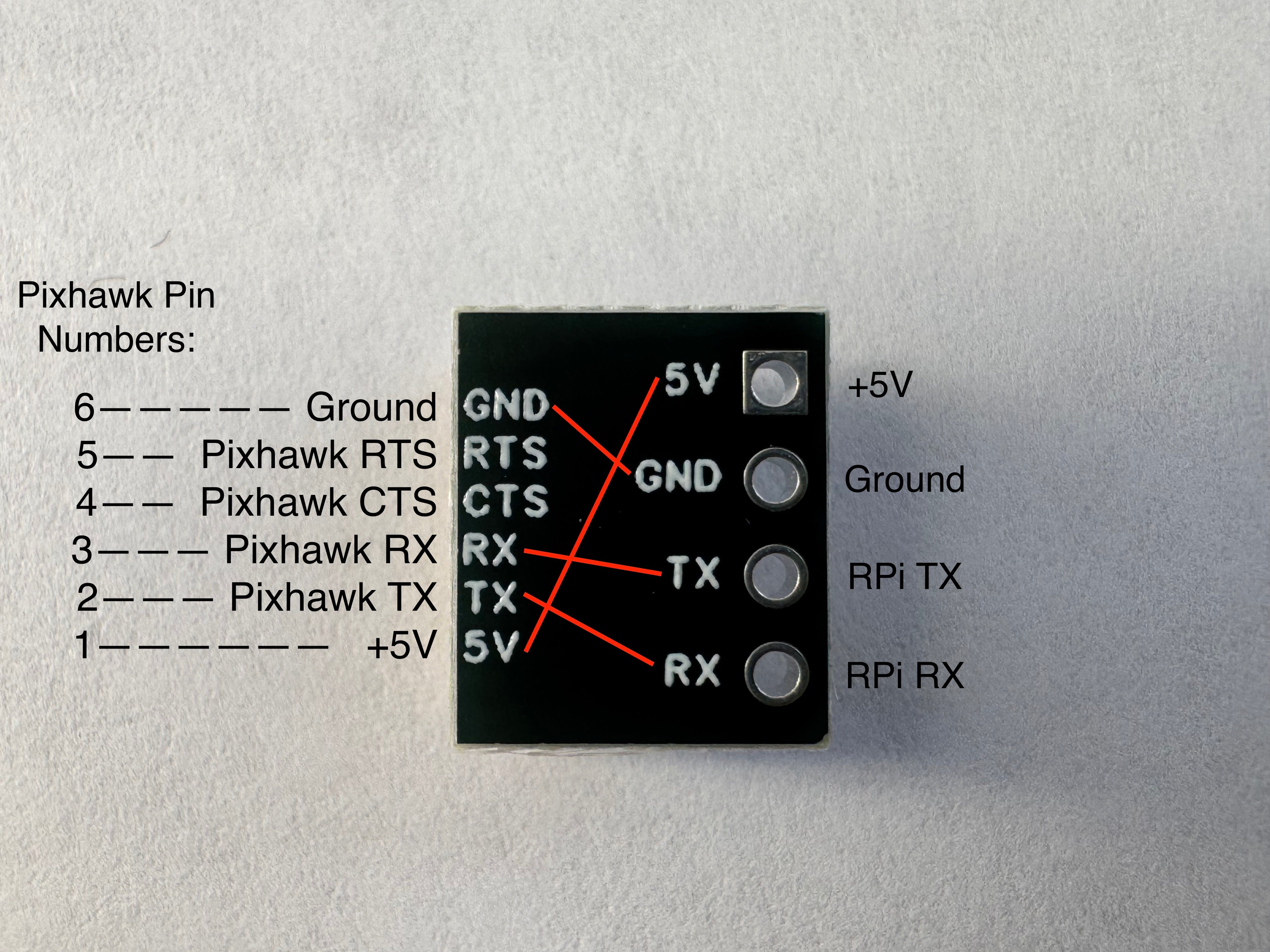

Connects the Pi's 5V, GND, TX, and RX pins to the Pixhawk's 5V, GND, RX, and TX pins.
Important: Some Raspberry Pis may require more power than the Pixhawk can provide. Newer Pixhawks, like the 6X or 6C, can power a Raspberry Pi Zero 2W. Power hungry Pis, like the 4 and 5, typically require an additional power source such as USB.
Details

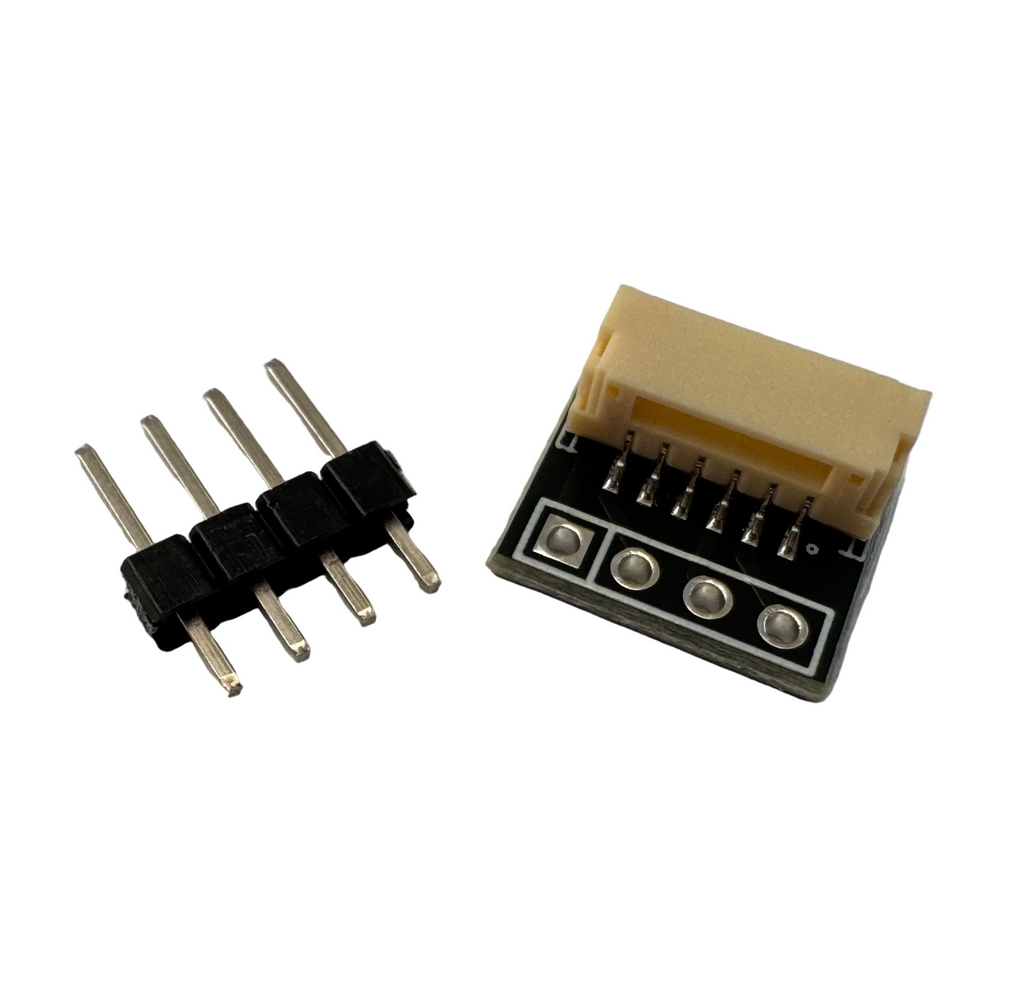

- Purchase includes a 4-pin male header.
- A Pixhawk telemetry cable is required (JST-GH to JST-GH 6-pin cable).
- The PCB uses lead-free solder.
